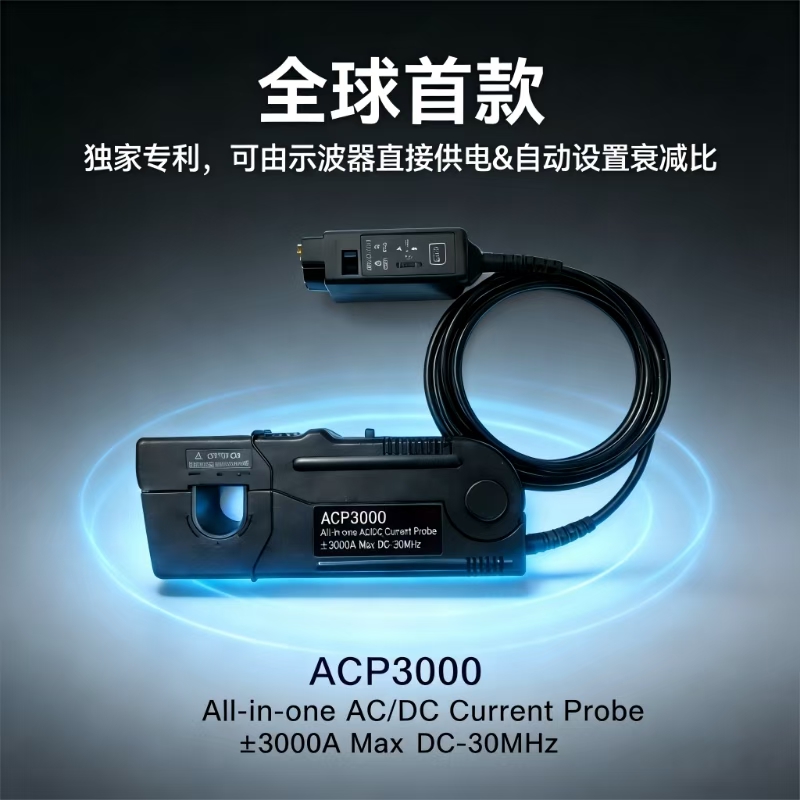

ACP3000 All-in-one AC/DC Current Probe

Description

Key Highlights

Ø World’s First Oscilloscope Direct Power Supply with Automatic Attenuation Setting

The ACP3000 is the world’s first AC/DC current probe that can be powered directly by an oscilloscope. It is compatible with mainstream oscilloscope interfaces and also supports USB-Type C power supply. The probe automatically recognizes and sets the attenuation ratio for plug-and-play operation, simplifying workflows and enhancing testing efficiency.

Ø Up to ±3000A Measurement Capability with Wide Frequency Coverage

The ACP3000 series offers three models covering measurement ranges from ±300A to ±3000A, with bandwidths up to DC-50MHz. This versatility meets diverse testing needs, from low-frequency power electronics to high-frequency switching waveform analysis.

Ø Extremely Low Waveform Distortion for Accurate Signal Reproduction

Utilizing exceptionally stable, high-performance sensor technology, the ACP3000 achieves minimal waveform distortion across its entire range. This ensures authentic and reliable measurement results, making it ideal for high-precision R&D and debugging applications.

Ø Superior Anti-Interference Capability for Complex Electromagnetic Environments

With excellent electromagnetic compatibility design, the ACP3000 maintains stable output even in environments with high-frequency switching and strong electromagnetic interference, ensuring clean signals and robust noise immunity.

Ø Extremely Low Insertion Loss for Non-Intrusive Testing

The probe introduces minimal impact on the circuit under test, with insertion loss controlled at an industry-leading level. This is particularly suitable for precision testing scenarios where circuit integrity is critical.

Ø Ultra-Low Noise Floor for Enhanced Weak Signal Resolution

Thanks to advanced signal conditioning and shielding technology, the ACP3000 maintains an exceptionally low noise floor across its wide bandwidth. With a minimum sensitivity as low as 0.02A, even subtle current variations can be captured clearly.

---

Rugged and Durable for Harsh Environments

The ACP3000 series features an industrial-grade design, supporting operation across a wide temperature range from -40℃ to +85℃. It delivers long-term stable performance even in high-dust and high-vibration environments. The probe head features a compact yet robust structure, with exceptionally stable sensors that are resistant to shock and aging, making them virtually indestructible and significantly reducing user maintenance costs.

	ACP300
Maximum current	±300A
bandwidtl	DC-5OMHz
Time ofascendance	≤7ns
accuracy	±1% typical value (ranty value)
Low/ High Maximum Current	30A/300A
Ratio of decay	20X/200X
Minimum sensitivity	0.02A/0.2A
Maximum wire diameter	5mm
Maximum naked wire voltage	150V RMS CATII, 100V RMS CATIII
Power requirements	Osclloscope direct supply/USe-TYPE C line supply
The reduction ratio is set	Automatic (depending on the osclloscope)
Long-term maximum current test	can
Maximum current frequency decrease	There’s no need.
Sensor	Extremely stable and difficult to damage
Temperature range of use	-40~+85C
Use in high dust environments	can
Use in high vibration environments	can
Cable length	2m
Probe head size
length	17.5cm
width	1.8cm
height	4cm
