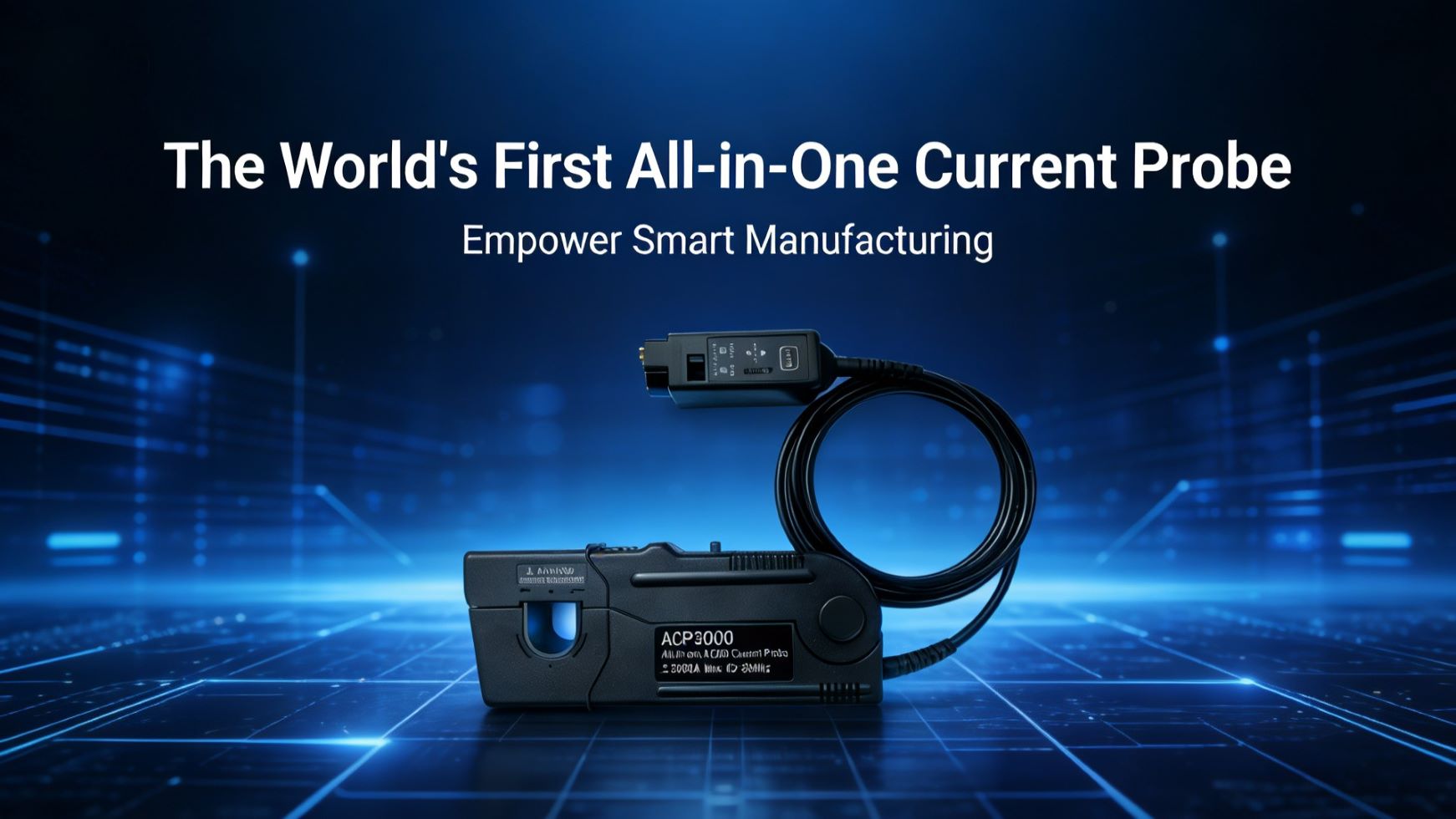

This customized AC/DC current probe is developed based on exclusive patented technology, supporting customized current ranges and test bandwidths on demand. It is suitable for multiple scenarios such as power electronics R&D, industrial equipment testing, and laboratory precision measurement, combining high accuracy, strong compatibility and industrial-grade durability to provide tailored solutions for personalized current detection requirements.

It supports customization of current ranges from ±300A to ±5000A and test bandwidths from DC‑10MHz to DC‑50MHz. Jaw size, cable length, protection rating and other parameters can also be adjusted as required. The low/high‑range ratios and minimum sensitivity are optimized simultaneously to precisely match testing requirements of different frequencies and ranges.

Equipped with an exclusive patented interchangeable adapter, it is compatible with all brands of oscilloscope interfaces from Generation 1 to Generation 3. It supports dual power supply modes — direct power from oscilloscopes or USB‑Type C — and allows automatic or manual attenuation ratio configuration. Only the adapter needs to be replaced when switching oscilloscopes, simplifying operation and protecting test assets. Adopting a newly structured sensor, it delivers high accuracy with a typical value of ±1%. The sensor is highly stable and damage‑resistant, supporting long‑term high‑current and high‑frequency testing without derating. With an ultra‑wide operating temperature range of -40℃ to +85℃, it can run stably in high‑dust and high‑vibration environments.

It comes standard with overvoltage protection, supporting bare‑wire voltage of 600V RMS CATII / 300V RMS CATIII. Paired with range switching, offset zeroing and an easy‑release handle, it is user‑friendly and ready for measurement upon power‑on. The standard configuration includes a ±3000A current range and DC‑30MHz bandwidth, along with accessories such as a Type‑C cable, test report and portable carrying case. It is backed by a one‑year original factory warranty and lifetime technical support.
